Description :

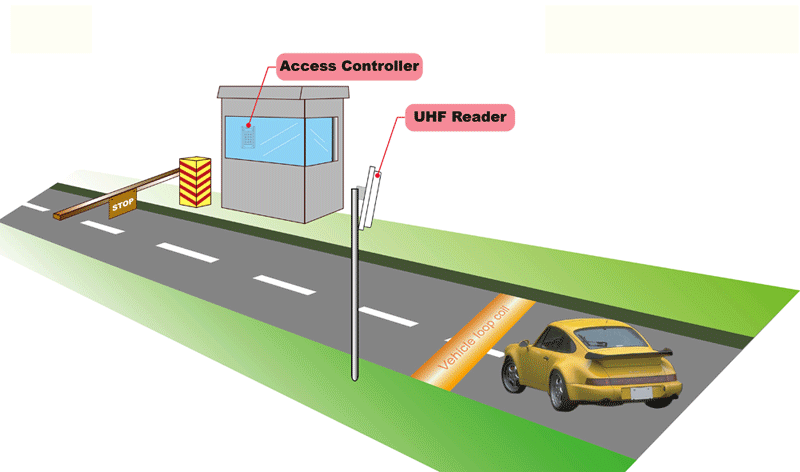

PK-UHF201 is one of high-performance UHF frequency reader, combining proprietary signal processing algorithms and efficient, with a high recognition rate processing performance and fast read and write, can be widely used in logistics, parking systems, access control systems, security systems and production process control, and other radio frequency identification (RFID) systems.

Features
?Protocol comply with UHF EPC Gen2(ISO18000-6C), ISO 18000-6B standard.
?Working frequency 902～928MHz(PK-UHF201U) / 865～868MHz(PK-UHF201E)
?Support adjustable frequency range (FHSS) or fixed specific working frequency.
?Power output 0-30dBm (adjustable)
?Built-in 12dBi polarized antenna as choice；Reading range 25M＊.
?Support operation Modes as Answer, Active, Trigger mode.
?Low power design, Input Power: DC +9V.
?Support RS-232, RS-485, Wiegand 26/34 Interface. Optional TCP/IP, POE, Wifi.
* Effective distance depends on antenna, tag and environment.

Specification :

•Dimension: 445(L) x 445(W) x 55(H)mm

•Net Weight: 2600g

•Gross Weight: 5000g

•Protocol: ISO18000-6B, EPC Class 1 Gen2(ISO18000-6C)

•Protection Grade: IP54

•Work Frequency: Standard ISM 865-868MHz(PK-UHF201E), 902~928MHz(PK-UHF201U)

•Frequency Hopping: FHSS

•Power Output: 0-30dBm(adjustable)

•Antenna: Built-in 12dBi linearized polarizedantenna

•Interface: RS232, RS485, wiegand 26/34(TCP/IP,Wifi can be customized）

•Operating Mode: Answer,Active,Trigger

•Read Range: 3~25m

•Write Range: 0~6m

•Reading Clue: Buzzer

•Input Power: 100-240V,DC+9V (Power Adapter)

•Power Consumption: 1W

•Operation Temp: -25°C~+60°C

•Storage Temp: -25°C~+80°C

•Humidity: 80%

•Regulatory: Compliant with CE,FCC

•Additional services: Provide Demonstration software and SDK for further development.





We reserve the right to change the specification without prior notice or obligation!

Features :

?Protocol comply with UHF EPC Gen2(ISO18000-6C), ISO 18000-6B standard.
?Working frequency 902～928MHz(PK-UHF201) / 865～868MHz(PK-UHF201-1)
?Support adjustable frequency range (FHSS) or fixed specific working frequency.
?Power output 0-30dBm (adjustable)
?Built-in 8dBi/12dBi polarized antenna as choice；Reading range 3~5M / 10M.
?Support operation Modes as Answer, Active, Trigger mode.
?Low power design, Input Power: DC +9V.
?Support RS-232, RS-485, Wiegand 26/34 Interface.

•
